PRODUCT DESCRIPTION, FEATURES & SPECS
Load Sensors For Standing Rigging
smarttune is designed to replace your existing turn screw.
(forestay/backstay/shrouds/diagonals).
Live Data To Your Phone Or Instruments
Live, static & dynamic load data to your phone via the smartfittings app, or to your on-board instruments via our gateway.
Learn And Repeat Fast Settings
Set your rig up to known settings and see the real-time effects of adjustments to match conditions.
Built To Survive The Toughest Ocean Environment

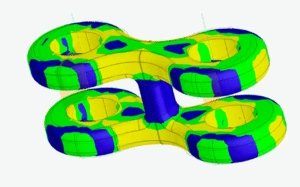

smarttune is durable and waterproof (beyond IP67), tested to destruction and built to withstand all the elements and rigours of the deck.
Assured Accuracy
smarttune is factory calibrated for immediate use out of the box and accurate to within 1% of maximum working load.
Logging
Data logged through the smartfittings manager app, integrated with GPS & ready for export to sailing analytics software.
For Boats Of All Sizes
Available in 5 sizes, from 5/16" to 3/4" (turnscrew size) meaning there's a smarttune for every boat.
The Latest Wireless Technology
No need for cables or wires, the device communicates with your phone over distances of up to 15metres while sailing, and with on-board instruments via our gateway over longer ranges.
Low Weight, Low Widnage
Designed by engineers from Cambridge University in collaboration with sailors. Precision design, optimised for low weight and low windage.
Compatibility
Paired with our gateway, smarttune is compatible with most modern marine electronics systems. Find out more about connecting smarttune to your displays.

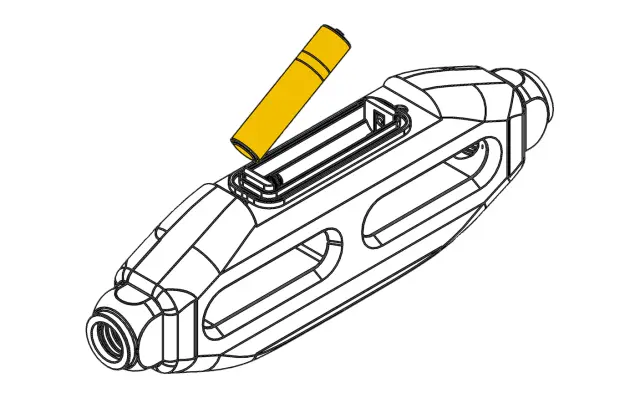

Battery Life
smarttune is powered by easy to source batteries: 1x CR2032 for 5/16" turnbuckle size or 2 x AAA for all others. With approximately 6 months of battery life.
What Size Smarttune Sensor Is Right For My Boat?
The easiest way to figure this out is to measure the male threaded stud that is screwed into your current turnscrew or get in touch and we should be able to help you. The different sizes correspond to the thread sizes:
Imperial Thread |
Metric Thread |
7/16” |
11.1mm |
½” |
12.5mm |
⅝” |
15.9mm |
¾” |
19.1mm |
5/16” |
7.9mm |
Connectivity

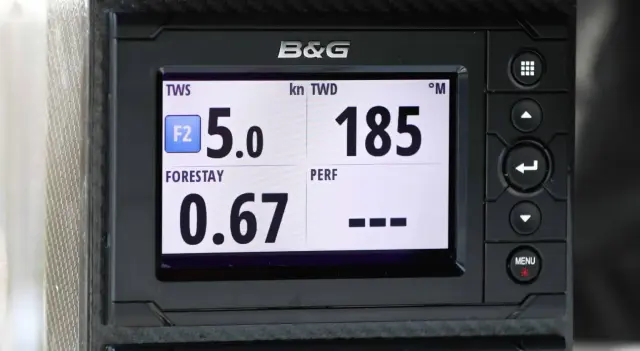

Our sensors feed data to your phone via the smartfittings app straight out the box, but with the addition of a Cyclops Marine Gateway are compatible with most modern marine displays.
We recommend using a gateway and on-board displays for communication over ranges above 15metres.
Cyclops Marine Gateway
Compatible With Most Modern Marine Electronics
Plugging directly into your existing displays or electronics configuration, our Gateway installs below deck (within 8m of load sensors) & communicates with a range of on-board systems.
It receives signals from sensors and converts them into useful second-by-second information at sailor’s fingertips.
Dome Antenna (With 1m Cable)
We recommend the addition of a Dome Antenna if you are planning to install your Gateway more than 8m from load sensor(s), or if your boat’s hull construction is primarily carbon fibre (as carbon fibre is a very effective blocker of wireless signals).
The cable plugs into your Gateway below deck, allowing the antenna itself to be installed on-deck in line-of-sight of sensors, for unobstructed connection.
Compatibility
Paired With A Gateway The Smart Range Has Proven Compatibility With:
|
B&G |
Sailmon |
Garmin |
nke |
Yacht Devices |
Expedition marine |
Chartplotters, Displays & Data Loggers |
Vulcan, Zeus³, Triton², Nemesis |
Element 7, 10, Ink |
GPSMAP, GMI20, GNX120, GNX130 |
Multigraphic |
Voyage Recorder YDVR-04 |
N/A |
Processors |
H5000 |
E4 |
N/A |
N/A |
N/A |
N/A |
Software |
Deckman |
NavDesk |
N/A |
N/A |
N/A |
Expedition Navigation & Sailing Software |
N/A = No Applicable product from this brand.
If your system is not listed, please contact us and we may be able to provide a solution. We are working hard to add to our list of compatible systems.
Smartfittings Manager App
The Smartfittings App Free on iOS and Android, click below or scan QR code to download
Multiple Sensors Display multiple sensors (up to 16 per page) simultaneously.
Simple, Flexible Displays Custom, easy to read displays with large numbers for in-race convenience.
Logging Logging feature integrates with GPS to take post race/training analysis to new levels.
Loadtalk Load data can be relayed to you via headphones at preset intervals.
Transferable Data Data ready for export to sailing analytics software
Improving Upwind Performance With Smarttune
